A SAS to SATA connector is used to bridge Serial Attached SCSI and Serial ATA storage equipment, but the terminology can conceal major differences in signal support, protocol translation, and physical design. The right choice depends on the drive connector, controller capabilities, cable layout, operating system, and whether an active chipset is required.
This guide compares ten relevant adapters and cables using their published specifications, stated compatibility, connector design, supported transfer rates, and construction. The list includes active SFF-8482 converters, passive physical adapters, Mini SAS breakout cables, SATA extenders, and one product that is clearly not a SAS to SATA solution.
Each pick reveals what makes it useful or where its limitations matter. Ratings are included where available, while suitability is judged more heavily by real hardware compatibility. Product availability and pricing can change, so confirm the current listing, connector layout, and controller requirements before purchasing.
Top 3 Picks for Best SAS to SATA Connector
SFF-8482 SAS to SATA Adapter
4.8Editor score
Built-in protocol chipset
Three transfer rate levels
Windows and Linux support
Mini SAS to Four SATA Cable
4.8Editor score
Four SATA drive outputs
Up to 6 Gbps per drive
Two-cable multipack
Top 10 Best SAS to SATA Connector in 2026 Compared
The comparison below separates direct SFF-8482 drive adapters from Mini SAS breakout cables, passive converters, and SATA-only extenders. It also highlights chipset requirements, supported connector formats, transfer rates, and the most important compatibility limitations.
ProductsSpecificationsEditor scorePrice
Best Budget
Wixine SFF-8482 Adapter
SFF-8482 drive connector
SATA 22-pin interface
Adapter card format
Two-piece package
3.8Editor score
Editor's Choice
SFF-8482 Active Adapter
Built-in conversion chipset
6, 3, 1.5 Gbps
SFF-8482 only
SATA power port
4.8Editor score
Best Premium
MEIRIYFA SFF-8482 Cable
29-pin SAS connector
7+15-pin SATA ends
50-centimeter cable length
Two-piece package
Xiwai SFF-8482 Card
Active chipset conversion
Three transfer speeds
SFF-8482 drive support
Integrated power connector
4.2Editor score
chenyang SFF-8482 Cable
SFF-8482 SAS end
SATA 22-pin end
10-centimeter cable length
Passive connection
4.1Editor score
Passive SFF-8482 Adapter
No electronic components
Unidirectional conversion
SATA 22-pin female
Gold-plated contact pins
3.5Editor score
SFF-8643 Mini SAS Cable
36-pin host connector
Four SATA outputs
3 and 6 Gbps
3.3-foot cable length
4.6Editor score
SATA 22-Pin Extender Pair
SATA male-to-female design
22-pin connector
Two-piece package
Multiple drive support
4.6Editor score
ADCAUDX SFF-8643 Breakout
SFF-8643 host end
Four SFF-8482 outputs
SATA power connectors
0.5-meter cable length
4.7Editor score
SFF-8087 Four-SATA Cable
SFF-8087 host end
Four SATA outputs
6 Gbps per drive
Two-cable multipack
4.8Editor score

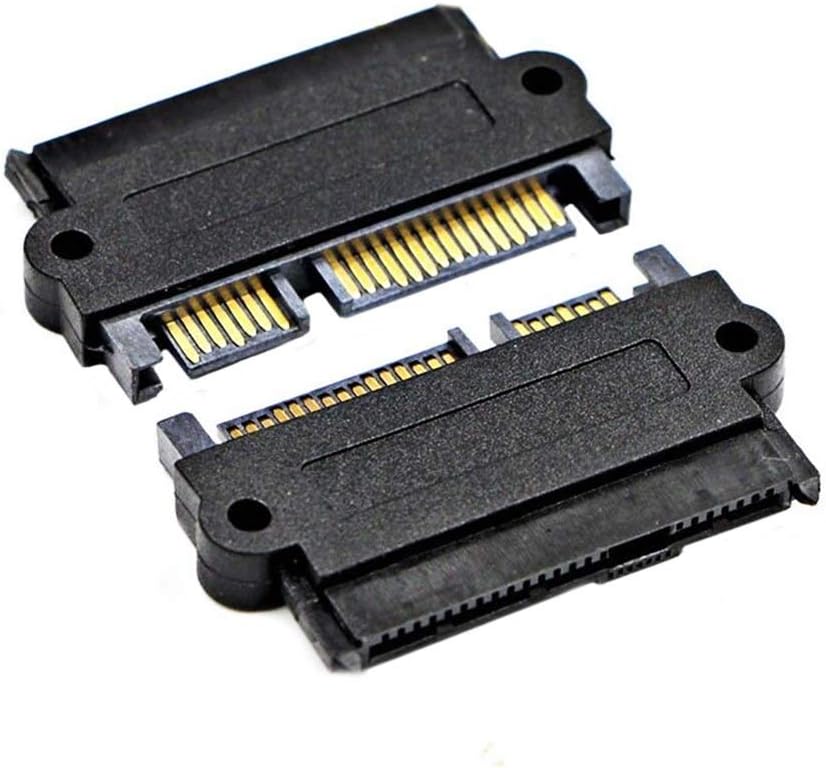

1. Wixine SFF-8482 Adapter – Compact Adapter Card Option
Wixine SFF-8482 Adapter
SFF-8482 SAS connection
SATA 22-pin interface
Compact adapter card
Two-piece package
The Wixine 2Pcs Main Board Small Port SAS Hard Disk Adapter SFF-8482 to SATA 22 Pin Adapter Card is a compact SFF-8482-to-SATA solution with a 3.8 rating. It is intended for installations where a SAS drive must terminate at a SATA controller, making it more relevant as a physical interface adapter than as a general-purpose protocol converter.
Pros
- Targets SFF-8482 drives
- Compact card format
- Includes two adapters
- Standard SATA output
Cons
- Requires compatible SAS chipset
- Cannot translate protocol alone
We may earn a commission when you buy through this link, at no additional cost to you.
The adapter's main appeal is its focused connector arrangement. It accepts a small-port SAS hard disk connection and presents a conventional SATA 22-pin interface, allowing a standard SATA data cable and SATA power lead to be used on the controller side. The two-piece package also provides a spare for future maintenance or a second drive position, although the listed specifications do not indicate that the included adapters are electronically active.
Its main limitation is clearly stated in the product information: it cannot connect a SAS hard drive to an ordinary SATA motherboard unless that motherboard or controller contains a suitable SAS chipset. It also cannot make a SATA drive work with a normal SAS motherboard unless the drive itself includes the necessary SAS chipset. In practical terms, this is not a universal bridge that creates SAS capability where none exists.
Consider this option for a technician who already knows that the destination controller supports SAS and needs a compact SFF-8482-to-SATA connection arrangement. It may suit a server, workstation, or hybrid storage controller, but buyers should not expect it to translate SAS signals for a basic desktop board. The key recommendation is to verify chipset support and the exact physical connector before ordering.
Best for Hybrid-Controller Installations
The most credible use is a system whose SATA controller already includes SAS chipset support. In that environment, the adapter provides a convenient physical path between the controller and an SFF-8482 drive without changing the broader storage architecture.
Check the Protocol Before Ordering
A matching connector shape does not guarantee communication. Confirm that the controller advertises SAS drive support and that its manual identifies the correct SFF-8482 or hybrid interface before purchasing this adapter.
We may earn a commission when you buy through this link, at no additional cost to you.
2. SFF-8482 Active Adapter – Most Capable Single-Drive Bridge
SFF-8482 Active Adapter
Integrated protocol chipset
29-pin SFF-8482 target
7+15-pin SATA host
Up to 6.0 Gbps
The SFF-8482 SAS 29Pin Target to 7+15 22Pin SATA Host HDD Disk Drive Raid Adapter 6Gbps with Chipset and Power Port stands out with a 4.8 rating and an integrated chipset. It is designed to let a standard SATA computer use an SFF-8482 SAS drive without requiring a dedicated SAS RAID controller, which makes it the most functionally complete single-drive bridge in this list.
Pros
- Active signal conversion chipset
- Works without SAS RAID card
- Supports three transfer rates
- No USB enclosure support
Cons
- SMART information may be incomplete
- Excludes SFF-8639 U.2 drives
We may earn a commission when you buy through this link, at no additional cost to you.
Its published compatibility includes SATA motherboards and controllers that lack native SAS support. The adapter is said to handle direct reading and writing under Windows 7, Windows 10, Windows 11, and Linux, while supporting transfer rates of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps. A dedicated SATA power port adds convenience when the adapter card has limited room for loose power leads.
There are two important trade-offs. The product information recommends against using a USB enclosure or USB cable because the USB master chipset is not adapted, which can cause incompatibility. SMART data may also appear incomplete or absent after conversion, although the stated normal reading and writing functions continue to work. The adapter supports only SFF-8482 SAS hard drives and expressly excludes SFF-8639 U.2 devices.
This is the leading recommendation for someone who needs to reuse one SFF-8482 SAS hard drive on an ordinary SATA system and wants actual chipset-based conversion rather than a passive pin adapter. It is particularly relevant to a controlled workstation, lab system, or server build where direct SATA attachment is required. Confirm the drive's exact connector and operating system first, and do not confuse SFF-8482 with SFF-8639.
Why the Chipset Matters
A passive adapter only changes physical pin alignment, while an active chipset handles the electronic conversion required to expose an SFF-8482 SAS drive through a normal SATA host interface. That distinction is central to this product's suitability.
Plan for Limited SMART Visibility
Even when reads and writes function normally, the listing warns that SMART information may be incomplete. Users who depend on detailed drive telemetry should check the adapter with the intended drive and operating system before relying on monitoring features.
We may earn a commission when you buy through this link, at no additional cost to you.
3. MEIRIYFA SFF-8482 Cable – Flexible Two-Drive Cable Option
MEIRIYFA SFF-8482 Cable
29-pin SAS connector
7-pin SATA data
15-pin SATA power
50-centimeter length
The MEIRIYFA SAS 29Pin SFF-8482 Male to 7Pin SATA Male Hard Disk Drive Raid Cable Adapter Extension Cable with 15 Pin SATA Power Port 2Pcs -50cm/19.69in is a cable-based option that provides approximately 50 centimeters of routing flexibility. Unlike a compact card, it separates the 7-pin SATA data connection from the 15-pin SATA power connection, which can make installation more manageable inside a large server chassis.
Pros
- Longer cable routing flexibility
- Separate SATA data connection
- Integrated power connector
- Two cables included
Cons
- No published customer rating
- Needs SAS-capable motherboard
We may earn a commission when you buy through this link, at no additional cost to you.
The product listing describes a 29-pin SFF-8482 connector containing seven SAS data pins and 15 pins associated with drive power, plus a 7-pin SATA data plug and 15-pin SATA power connector. The supplied description also states that the cable can connect SATA hard drives to SATA motherboards, SAS hard drives to SAS motherboards, and the appropriate data and power leads to SFF-8482 connections.
The important caveat is that this is not presented as an active bridge for adding SAS capability to an ordinary SATA motherboard. The listing says SAS hard drives cannot connect to regular SATA motherboards unless the motherboard includes a SAS chipset, and SATA drives cannot connect to normal SAS motherboards unless the drive has the relevant chipset. Its flexibility therefore comes from cable routing, not from broader protocol support.
Choose this cable when the destination system already has compatible SAS chipset support and the internal layout requires a roughly 50-centimeter extension. It may be useful for drive carriers, backplanes, or crowded cases where a short rigid card would be difficult to position. Verify every connector, especially the motherboard's SFF-8482 support, before installation.
Useful Where Space Is Tight
A flexible 50-centimeter lead can be routed around fans, drive cages, and power harnesses more easily than a rigid adapter. It is particularly useful when the controller and drive positions are separated inside a larger chassis.
Separate Data and Power Leads
The dedicated 7-pin and 15-pin SATA connectors make the required connections visible and reduce the chance of confusing data with power. The SFF-8482 end still must match the drive or compatible backplane exactly.
We may earn a commission when you buy through this link, at no additional cost to you.
4. Xiwai SFF-8482 Adapter Card – Polished Active Conversion Option
Xiwai SFF-8482 Adapter Card
Active chipset conversion
Three transfer speeds
SFF-8482 SAS input
Integrated SATA power port
The Xiwai SFF-8482 Connector SAS 29Pin to 7+15 22Pin SATA Hard Disk Drive Raid Adapter Card with Power Port and Chipset offers active conversion in a rigid card format. Its 4.2 rating reflects a well-specified option for connecting an SFF-8482 SAS hard drive to a conventional SATA interface without adding a full SAS RAID card.
Pros
- Converts SAS to SATA
- Supports common operating systems
- Avoids dedicated SAS RAID card
- Flexible transfer rate support
Cons
- SMART data may be incomplete
- Not compatible with U.2
We may earn a commission when you buy through this link, at no additional cost to you.
The built-in chipset is the defining feature. It is intended to let SATA computers read and write compatible SAS hard disks even when the SATA interface does not provide native SAS functionality. The listing identifies support for Windows 7, Windows 10, Windows 11, and Linux, along with transfer rates of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
As with the other active adapter in this guide, there are functional boundaries. USB enclosures and USB cables are not recommended because the USB master chipset is not adapted, and incompatibility may result. SMART information can display incompletely or not at all after conversion, though normal reading and writing are said to remain unaffected. Only SFF-8482 SAS hard drives are supported, while SFF-8639 U.2 hard drives are excluded.
This is a strong option for a technically capable user who values a compact, dedicated adapter with integrated power access. It may fit a server or workstation migration where a legacy SAS drive needs to remain attached to a modern SATA motherboard. The recommendation is conditional: check the drive connector, controller layout, and operating system before purchase, and avoid using a USB bridge as an intermediate step.
Active Conversion for Standard Hosts
The integrated chipset makes this suitable for a SATA-only host that cannot natively address an SFF-8482 SAS disk. That makes it more versatile than a purely mechanical adapter, provided the operating system and drive are supported.
Verify Connector and Drive Family
SFF-8482 and SFF-8639 are not interchangeable. The product supports the former only, so inspect the drive and confirm that it is not a U.2 device before ordering.
We may earn a commission when you buy through this link, at no additional cost to you.
5. chenyang SFF-8482 Cable – Simple Short Hybrid-Controller Lead
chenyang SFF-8482 Cable
10-centimeter cable length
29-pin SAS end
22-pin SATA end
Hybrid-controller use
The chenyang SAS to SATA Cable,SFF-8482 SAS 29Pin to SATA 22Pin Hard Disk Drive Raid Extension Cable is a compact passive-style cable for SFF-8482 SAS drives and SAS SSDs. Its 4.1 rating and straightforward 10-centimeter design make it most appropriate for internal systems where the controller and drive sit close together.
Pros
- Compact cable length
- Supports SAS drives and SSDs
- Simple physical connection
- Works with hybrid controllers
Cons
- No protocol chipset
- Cannot add SAS support
We may earn a commission when you buy through this link, at no additional cost to you.
SFF-8482 is used to interface SAS hard drives and SAS SSDs, and this cable combines a 29-pin SAS connection with a 22-pin SATA connection. Its stated purpose is to connect a SAS HDD with an SFF-8482 port to a SAS-compatible SATA hybrid controller. The relatively short length is useful for tight layouts and can reduce excess cable clutter.
The specifications clearly limit the device to compatible hardware. It can connect a SATA hard drive to a SATA motherboard and a SAS hard drive to a SAS motherboard, but it cannot make an ordinary SATA motherboard work with a SAS hard drive unless the motherboard already contains a SAS chipset. Likewise, connecting a SATA drive to a normal SAS motherboard requires the drive itself to have the relevant chipset.
Buyers should choose this cable when they have a hybrid controller with the correct SFF-8482 interface and need a short extension. It is not a solution for users hoping to connect a SAS drive to a basic desktop motherboard without additional controller hardware. Check the controller documentation and physical connector layout before purchase.
A Practical Internal-Server Lead
A 10-centimeter cable is well suited to drive carriers, compact backplanes, and systems where the SAS and SATA controller connections are nearby. Its small size also avoids the bulk of a full breakout harness.
Physical Conversion Without Translation
This cable changes the connector arrangement but does not add a protocol translator. The destination controller must already support the appropriate drive technology, so controller compatibility is more important than cable shape.
We may earn a commission when you buy through this link, at no additional cost to you.
6. Passive SFF-8482 Adapter – Minimal Physical Converter
Passive SFF-8482 Adapter
Passive pin-to-pin design
Unidirectional SAS conversion
SATA 22-pin female
Gold-plated contact pins
The SFF-8482 29-Pin SAS to SATA Unidirectional Adapter is a passive physical converter with no integrated chipset or electronic components. Its 3.5 rating reflects a narrow role: it aligns the physical pins of an SFF-8482 SAS hard drive with a SATA interface on a controller that already has integrated SAS chipset support.
Pros
- No firmware or chipset required
- Simple physical conversion
- Standard SATA connection
- Gold-plated contact pins
Cons
- Requires integrated SAS chipset
- Does not support protocol translation
We may earn a commission when you buy through this link, at no additional cost to you.
Because it performs no signal processing or protocol translation, the adapter is extremely direct. The SAS drive connects to the SFF-8482 side, while a standard SATA cable attaches to the 22-pin female output. Gold-plated contacts and molded plastic housing are intended to support stable connections in server or desktop installations.
The critical compatibility condition cannot be overstated. The motherboard or controller must have a SAS chipset, and the product is not intended for SATA drives connected to SAS ports or SAS drives connected to non-SAS SATA ports. A standard desktop SATA controller may physically accept the adapter while remaining unable to recognize the attached drive.
This option is best for a user with a known SAS-capable hybrid controller who values simplicity and does not need a chipset bridge. It is less suitable for a typical SATA-only motherboard because the passive design cannot create missing SAS functionality. Confirm controller support, use the correct SATA data and power connections, and avoid treating physical fit as proof of protocol compatibility.
Why Passive Is Not Always Simpler
Although the adapter contains no electronics, the system still needs the correct controller capability. A passive design removes signal processing, not the requirement for a compatible SAS chipset somewhere in the storage path.
Best for Known Hybrid Systems
If a controller manual explicitly confirms SAS drive support, the passive adapter can provide a neat physical interface. The gold-plated contacts add useful construction detail for a connector that may be handled during routine maintenance.
We may earn a commission when you buy through this link, at no additional cost to you.
7. Internal Mini SAS Cable – Four-Drive RAID Breakout
Internal Mini SAS Cable
SFF-8643 host connector
Four SATA drive ends
3 and 6 Gbps support
3.3-foot length
The Internal Mini SAS to SATA Cable, SFF-8643 to SATA Forward Breakout Compatible with Raid Controller Hard Drive (3.3ft) is a four-drive breakout cable for internal server storage. Its 4.6 rating and documented compatibility with 12 Gbps host bus adapters or RAID controllers make it useful when a dense controller port must serve several ordinary SATA drives.
Pros
- Connects four SATA drives
- Works with HBA or RAID
- Low-profile locking connectors
- Includes routing protection
Cons
- Will not fit backplane SFF-8643
- Older host interface specification
We may earn a commission when you buy through this link, at no additional cost to you.
The cable uses a 36-pin SFF-8643 host connector and four 7-pin SATA device connectors. It is described as compatible with 3 Gbps and 6 Gbps SATA drives while supporting migration toward a 12 Gbps storage area network system. A 3.3-foot length provides enough room for internal routing, while slim ribbon construction minimizes the effect on airflow.
Installation features include acetate-cloth tape over the ribbon cables for strain relief, woven mesh over part of the harness, P1 through P4 identification markers, and low-profile SATA connectors with easy-grip treads and stainless-steel latches. Those details help with cable management, drive identification, and resistance to accidental disconnection or vibration.
The decisive restriction concerns where the SFF-8643 port appears. The cable must connect to an SFF-8643 port on a motherboard, host bus adapter, or RAID controller, but it will not work with an SFF-8643 port located on a backplane. This is an excellent choice for a conventional server expansion using four discrete SATA drives, but not for a backplane that expects a different breakout arrangement.
Practical Multi-Drive Expansion
Four independently terminated SATA connectors make it possible to distribute several direct-attached drives from one controller port. This is useful in server cases where individual motherboard SATA channels are limited or unavailable.
Airflow-Aware Internal Routing
Slim ribbon cables and partial woven covering help the harness fit into a busy server chassis without adding substantial bulk. The locking SATA connectors also help maintain secure connections around moving fans and vibration.
We may earn a commission when you buy through this link, at no additional cost to you.
8. SATA 22-Pin Extender Pair – Drive-Port Protection, Not SAS Conversion
SATA 22-Pin Extender Pair
22-pin male-to-female
7+15-pin SATA layout
Two adapters included
Molded PVC housing
The 2 Pack SATA to SATA HDD Adapter, 22 Pin (7+15) Male to 22 pin Female Extender for 2.5” HDD, Sata Converter Adapter，Connector Slimline is not a SAS to SATA converter. It is included in this comparison because its title can be confused with the broader category, and its own listing explicitly warns that it is a SATA male-to-female extender rather than a SAS to SATA adapter.
Pros
- Protects original drive ports
- Supports several drive sizes
- Gold-plated copper contacts
- Two-piece package
Cons
- Not a SAS to SATA adapter
- Cannot translate protocols
We may earn a commission when you buy through this link, at no additional cost to you.
Its actual purpose is to protect the original port of a 2.5-inch hard drive, 2.5-inch solid-state drive, or 3.5-inch hard drive. The 22-pin SATA interface combines seven pins for data with 15 pins for power. The package includes two adapters, and the stated drive coverage includes 2.5-inch and 3.5-inch hard drives, some 1.8-inch SSDs, and optical drives.
Molded PVC construction and gold-plated SATA copper contacts are designed for repeated use, but the device adds no new controller capability and performs no protocol conversion. It can also be described as a SATA 13-pin to 2.5-inch SATA adapter for certain laptop optical drives. A separate power supply must be provided when using a hard disk with this type of extender.
Do not choose it for an SFF-8482 SAS drive. It would be appropriate only for a system that already uses ordinary SATA and needs a short male-to-female extension or a sacrificial connection point. The product's 4.6 rating may be favorable, but high user satisfaction does not change the category mismatch; connector verification should come before any rating comparison.
A Useful Drive-Protection Accessory
Putting a male-to-female extender between a drive and its original cable can reduce wear on the drive's own connector. That is a practical benefit in systems where drives are serviced regularly.
Avoid SAS Connection Confusion
The 7+15-pin SATA layout is entirely different from the 29-pin SFF-8482 SAS interface. It cannot accept a standard SAS drive and should never be treated as an active or passive SAS bridge.
We may earn a commission when you buy through this link, at no additional cost to you.
9. ADCAUDX SFF-8643 Breakout
ADCAUDX SFF-8643 Breakout
SFF-8643 host end
Four SFF-8482 outputs
SATA power adapters
0.5-meter length
The ADCAUDX Mini-SAS to SAS-Cable: 0.5M SFF-8643 to SAS SFF-8643 to SFF-8482 combines a high-density host connection with four SFF-8482 branches. Its 4.7 rating makes it one of the stronger-rated options for a legacy storage layout where a SAS controller or motherboard must reach multiple older-style SAS drives.
Pros
- Four labeled breakout paths
- Supports legacy SAS drives
- Shielded cable construction
- Includes SATA power leads
Cons
- Not for backplane Mini SAS
- Requires external drive power
We may earn a commission when you buy through this link, at no additional cost to you.
The SFF-8643 male host connector links to a SAS controller, motherboard, or PCIe controller, while the four SFF-8482 branches terminate at compatible drives or backplane connections. Each SFF-8482 branch includes a seven-pin SATA data connector and a 15-pin SATA power connector, allowing separate power leads to be attached. The stated per-drive transfer rate reaches 6 Gbps.
Construction details include thin raw SAS cabling, tape and braided woven material, an aluminum-foil shielding layer, and a Mylar covering. The supplied description also notes labeled connectors for simpler cable management. A 0.5-meter length gives enough routing distance for a compact server enclosure without creating a large excess of cable.
The most significant warning concerns backplanes. The listing states that an SFF-8643-to-four-SFF-8482 breakout does not work with the SAS driver arrangement used by an SFF-8643 backplane and should not be connected to SFF-8643 on a backplane. In addition, SATA power cables must be supplied separately for the individual drive branches. It is best for a conventional controller-to-drive installation, not a Mini SAS backplane deployment.
Designed for Legacy SAS Expansion
The four SFF-8482 branches are valuable when a modern controller offers Mini SAS but the installed drives use individual SFF-8482 connections. The breakout provides a structured way to fan out those connections.
Shielding and Routing Benefits
The foil and woven shielding layers can help protect the signal path in a server environment. Labeled branches and a moderate 0.5-meter length also make the harness easier to arrange than a collection of unrelated individual leads.
We may earn a commission when you buy through this link, at no additional cost to you.
10. Mini SAS to Four SATA Cable – Value for Multi-Drive RAID
Mini SAS to Four SATA Cable
SFF-8087 host connector
Four SATA outputs
Up to 6 Gbps per drive
Two-cable multipack
The Mini SAS to 4 SATA Cable, 36 Pin SFF 8087 Host/Controller to 7 Pin SATA Target/Backplane, Compatible with PERC H310, RAID Controller 3Feet(2 Pack) is a dual-cable breakout set for internal RAID expansion. With a 4.8 rating, it offers a strong combination of four-drive fan-out, up to 6 Gbps per drive, and two included three-foot harnesses.
Pros
- Serves up to eight drives
- Supports hardware RAID arrays
- Six Gbps per drive
- Slim airflow-friendly cables
Cons
- Older SFF-8087 host format
- Controller compatibility required
We may earn a commission when you buy through this link, at no additional cost to you.
Each cable has a 36-pin SFF-8087 host end intended for a RAID controller or PCIe controller and four 7-pin SATA outputs for discrete drives. The listing describes support for arrays spanning two cables and sharing performance across two compatible PCIe 2.0 x8 lanes with appropriate host bus adapters. Compatibility with a PERC H310 is specifically mentioned, but the wider requirement is a controller with the matching SFF-8087 port.
The harness design is intended for case installation. Slim ribbon cables minimize airflow impact, while acetate-cloth tape provides strain relief without adding rigidity. Woven mesh covers part of the cable, P1 through P4 labels identify the drive branches, and low-profile SATA connectors use easy-grip treads and stainless-steel latches to help prevent accidental disconnection and reduce vibration-related disconnections.
This is a practical choice for building or expanding a hardware RAID system around older Mini SAS controller hardware. Two cables can support as many as eight SATA drives, making it more versatile than a single-drive SFF-8482 adapter. It is not appropriate for a controller that uses SFF-8643, SFF-8083, or another host format, so inspect the controller's physical port and supported drive count before ordering.
Efficient Multi-Drive Fan-Out
Four SATA outputs from one controller port reduce the number of separate host connections needed. With two cables, an installer can build a larger array while retaining organized, identifiable drive branches.
Designed for Internal Airflow
The slim ribbon profile is beneficial in server and workstation cases where airflow is already restricted. Strain relief, woven protection, and locking SATA connectors add durability without requiring a bulky external enclosure.
We may earn a commission when you buy through this link, at no additional cost to you.
Buying Guide – How to Choose the Best SAS to SATA Connector
The most important buying decision is not the label on the package but whether the adapter performs protocol conversion, merely changes connector shape, or fans out a controller connection. Start with the exact drive and controller connectors, then consider transfer rate, drive family, system environment, and installation constraints.
Identify Every Physical Connector
Match all connectors before comparing other features. Check the controller documentation rather than relying only on the shape of a socket.
Determine Whether Protocol Translation Is Needed
Choose active conversion when the host lacks native SAS support. Choose a passive cable only when the controller already supports SAS.
Confirm the Exact Drive Family
Verify the drive standard and connector, not merely the word SAS. SFF-8482 support does not imply SFF-8639 U.2 support.
Match Host Port and Controller Type
Confirm the host port, target connectors, controller model, and backplane behavior before selecting a multi-drive harness.
Assess Transfer Rate Requirements
Choose a rate that the complete chain supports, and prioritize correct controller and drive compatibility over a headline specification.
Consider SMART and Monitoring Support
Check SMART visibility before deployment, especially in servers where proactive failure detection is important.
Plan for Power and Physical Space
Match connector bulk, cable length, and power arrangement to the chassis. Check airflow and strain relief before installation.
Account for Operating System and Use Case
Choose the adapter for the specific role: desktop reuse, server migration, RAID expansion, or data transfer each has different priorities.
How to Use and Care for Your SAS to SATA Connector
Begin with a full shutdown and the system's power disconnected. Identify the exact drive connector, adapter type, host port, and SATA power arrangement before touching any hardware. If the adapter is active, install it in a suitable expansion or adapter position and connect the required SATA power lead. If it is a passive cable or breakout, verify that the controller already supports the attached drive family. Never force a connector, and never rely on physical fit to override a written compatibility warning.
For a single-drive setup, connect the SFF-8482 drive to the adapter, then attach the SATA data connection to the host. The listed active adapters support Windows and Linux systems, but the drive may need to be initialized or assigned within the operating system. After power-up, check the storage utility, file system, and partition layout. A new, reused, or previously configured drive may require initialization, which can erase accessible data, so verify its status and back up any needed content before changing it.
For a multi-drive breakout, power down again before attaching any drive branch. Connect and secure the host end first, route the slim ribbon cable without blocking airflow, and attach each labeled SATA branch to the intended drive. Install the required SATA power connectors, ensure every latch is seated, and avoid leaving excess cable loose near rotating fans. After startup, confirm that the controller detects the expected number of drives. If a drive is missing, reseat both data and power connections and revisit controller or backplane compatibility rather than assuming the adapter is defective.
Frequently Asked Questions
Can a SAS to SATA adapter make a SAS drive work on a normal SATA motherboard?
Only an adapter with active chipset-based protocol conversion may be able to do that. Passive SFF-8482-to-SATA adapters merely rearrange physical pins and require a controller that already includes SAS chipset support. A standard SATA-only motherboard may accept a passive adapter while still being unable to recognize the SAS drive. Check the listing for active conversion and the motherboard's specifications before purchasing.
What is the difference between SFF-8482 and SFF-8639?
SFF-8482 is a 29-pin drive connector used by many SAS hard drives and SAS SSDs, while SFF-8639 is associated with U.2 devices. The active adapters in this guide support SFF-8482 and expressly exclude SFF-8639 U.2 drives. Their multipin shapes may appear similar, but the connector standards and signaling requirements are not interchangeable.
Are passive SAS to SATA adapters better than active adapters?
Passive adapters are simpler and contain no chipset, but they cannot translate protocols. They are suitable when the destination controller already supports SAS through a compatible hybrid interface. Active adapters are more useful for ordinary SATA-only hosts because their circuitry can perform the necessary conversion, although SMART information may be incomplete. The better choice depends on the controller rather than on simplicity alone.
Can an SFF-8643 Mini SAS cable connect to any Mini SAS backplane?
No. The relevant product descriptions warn that certain SFF-8643 breakout arrangements do not work with an SFF-8643 backplane because the backplane expects a different connection method. A breakout designed for a host bus adapter or RAID controller may still be physically similar to a backplane connector. Review both the host and backplane documentation before ordering.
Will SMART drive information remain available after conversion?
The active adapters state that SMART information may display incompletely or not at all after conversion, although normal reading and writing can continue. This limitation matters for servers that rely on temperature monitoring, error counters, and predictive-failure alerts. Test the specific drive and operating system, and consider a natively compatible SAS controller if comprehensive monitoring is essential.
Can these adapters be used with USB enclosures or USB-to-SATA cables?
The active product information specifically advises against connecting the adapter to a USB enclosure or USB cable because the USB master chipset is not adapted. Incompatibility may result even if the physical SATA connection fits. Use the adapter with a direct internal SATA controller or a compatible SAS host, and confirm operating-system support before transferring data.
Do I need separate SATA power cables for a breakout harness?
It depends on the design. The SFF-8643-to-SFF-8482 breakout includes SATA data and SATA power connectors for each branch, so separate SATA power cables are needed to supply those drive connections. Other adapters include a dedicated power port or accept a combined 22-pin SATA lead. Read the product's included-parts and connection instructions to determine the correct power arrangement.
Is a SATA 22-pin male-to-female extender a SAS to SATA adapter?
No. A SATA 22-pin extender connects ordinary SATA hardware to SATA hardware and may protect a drive's original port from wear. It has no SAS protocol capability and cannot accept an SFF-8482 SAS drive. Always verify that a listing explicitly mentions SFF-8482 or another SAS connector rather than relying on broad wording such as storage adapter.
Final Thoughts on Choosing the Best SAS to SATA Connector
The strongest general recommendation is the SFF-8482 SAS 29Pin Target to 7+15 22Pin SATA Host HDD Disk Drive Raid Adapter 6Gbps with Chipset and Power Port. Its built-in chipset, 4.8 rating, stated operating-system support, and 6 Gbps capability make it the most versatile single-drive option for attaching SFF-8482 SAS storage to a conventional SATA system. The Xiwai active card is another capable choice with integrated power access, although its 4.2 rating is lower.
For multi-drive expansion, the Mini SAS to 4 SATA Cable is the best budget-oriented recommendation. It provides a 4.8 rating, two three-foot SFF-8087-to-SATA harnesses, and support for as many as eight drives when used with a compatible controller. The SFF-8643 Mini SAS and ADCAUDX SFF-8643-to-SFF-8482 breakouts are better suited to specific controller and legacy-drive arrangements. Passive cables remain useful only where the host already includes SAS chipset support, and the SATA 22-pin extender should not be mistaken for a SAS converter.
Before buying any connector, verify the exact drive standard, physical host port, backplane design, power arrangement, operating system, and need for SMART monitoring. Compatibility mistakes are more likely than mechanical installation problems, so consult the controller manual and the product's limitation notes. Product listings and prices change over time, so review the current details and purchase options immediately before making a final selection.
